RCX Lever Operated Hydraulic Joystick

Technical Specifications:

Hydraulic Fluid:
Mineral Oil
Maximum input Pressure:
100 bar
Maximum back pressure on tank line:
3 bar
Number of Ports:
4

Technical Information Parts Breakdown

Enquiry Form

Enquiry Form
Description
Accessories & Spare Parts

Technical Specifications

• Maximum input pressure: 100 bar
• Maximum back pressure on tank line: 3 bar
• Oil input capacity: 16 l/min
• Hysteresis: 0.9 bar
• Hydraulic fluid: Mineral oil
• Fluid temperature range: -20+80°C
• Fluid viscosity range: 10÷300 Cst
• Recommended filtration: 25 μ Absolute
• Recommended Operating Pipes: 8mm dia rigid, 1/4” BSP flexible

• Body: Cast Iron
• Plunger: Stainless steel
• Plunger Guide: Brass
• Handles: Microswitch Breaking
• Direct Current Load: Resistive 4.8A/30 VDC
• Alternating Current Load Resistive: 1.5A/250 VAC
• Protection: IP 40

RCX Series

Loading ...

{"mode":"ajax","ajax_url":"https:\/\/dev.crosshydraulics.co.nz\/wp-admin\/admin-ajax.php","selected_lang":"en_AU","table_data":[],"heads":{"sku":"Product Code","pa_model-code":"Model Code","pa_description":"Description","pa_metering-control":"Metering Control","thumbnail":"Click Image to View Product"},"hide_on_mobile":[],"cells_width":["auto","auto","auto","auto","auto"],"orders":{"id":"desc","post_title":"asc","post_status":"asc","post_date":"desc","post_modified":"desc","comment_count":"desc","price":"asc","regular_price":"asc","sale_price":"asc","sku":"asc","downloadable":"asc","weight":"asc","length":"asc","height":"asc","width":"asc","manage_stock":"asc","stock_status":"asc","stock_quantity":"asc","sold_individually":"asc","total_sales":"asc","review_count":"asc","menu_order":"asc","average_rating":"asc"},"editable":[],"custom_field_keys":[],"total_rows_count":25,"use_load_more":1,"css_classes":"","no_found_text":"","show_print_btn":0,"post_id":0,"compact_view_width":-1,"stop_notice":"","use_flow_header":1,"style":"","skin":"","pagination":{"position":"tb","next":{"class":"woot-btn","content":">"},"prev":{"class":"woot-btn","content":"<"},"input":{"class":"woot-form-control"}},"lang":{"loading":"Loading ...","no_data":"No Data!","error":"Error!","items":"Products","page":"Page","pages":"Pages","load_more":"Load More"},"per_page_sel_position":"b","per_page_sel_pp":["25","50","100","150","200"],"print_css_url":"https:\/\/dev.crosshydraulics.co.nz\/wp-content\/plugins\/woot-products-tables\/assets\/css\/print.css","request_data":{"action":"woot_get_table_data","fields":["sku","pa_model-code","pa_description","pa_metering-control","thumbnail"],"post_type":"product","wp_columns_actions":"woot_woocommerce_tables","table_id":188,"predefinition":"{\u0022rules\u0022:{\u0022by_taxonomy\u0022:\u0022product_cat:2153\u0022,\u0022sku\u0022:\u0022-1\u0022}}","filter_data":"","filter_provider":"woocommerce","orderby":"sku","order":"asc","per_page":25,"current_page":0,"shortcode_args_set":"{\u0022id\u0022:\u0022188\u0022,\u0022action\u0022:\u0022woot_woocommerce_tables\u0022,\u0022no_found_text\u0022:\u0022\u0022,\u0022use_flow_header\u0022:1}","woot_link_get_data":"[]"}}

RCX Enquiry Form

Welcome to our online enquiry form for the RCX Lever Operated Hydraulic Joystick.
Have a question? Contact our Sales team for further information or orders at [email protected].

1. Handle Selection

Select Handle *

Enter Quantity *

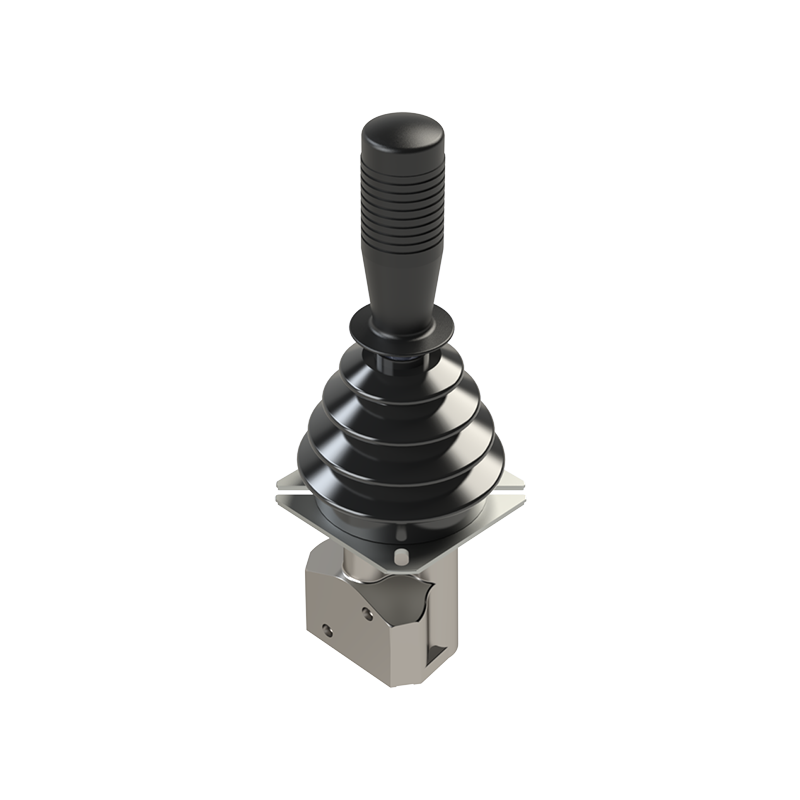

Accessories & Spare Parts (Optional)NoneRCXAWA27 - Handle to Suit RCX – Handle without Microswitch (Standard)RCXBWA27 - Handle to Suit RCX – Single Switch Handle with Microswitch to CloseRCXDWA27 - Handle to Suit RCX with Dual Microswitch

Configuration Notes

Customer Information

First Name *

Last Name *

Email Address *

Company *

Phone Number *

Country *

State *VICNSWQLDSAWANTTAS

Your Message

Hydraulic joystick, double function, available with several types of handles. Single lever joystick to control two directional control valve working sections.

Technical Specifications:

• Maximum input pressure: 100 bar
• Maximum back pressure on tank line: 3 bar
• Oil input capacity: 16 l/min
• Hysteresis: 0.9 bar
• Hydraulic fluid: Mineral oil
• Fluid temperature range: -20+80°C
• Fluid viscosity range: 10÷300 Cst
• Recommended filtration: 25 μ Absolute
• Operating Pipes: 8mm dia rigid, 1/4” BSP flexible

RCX Series
