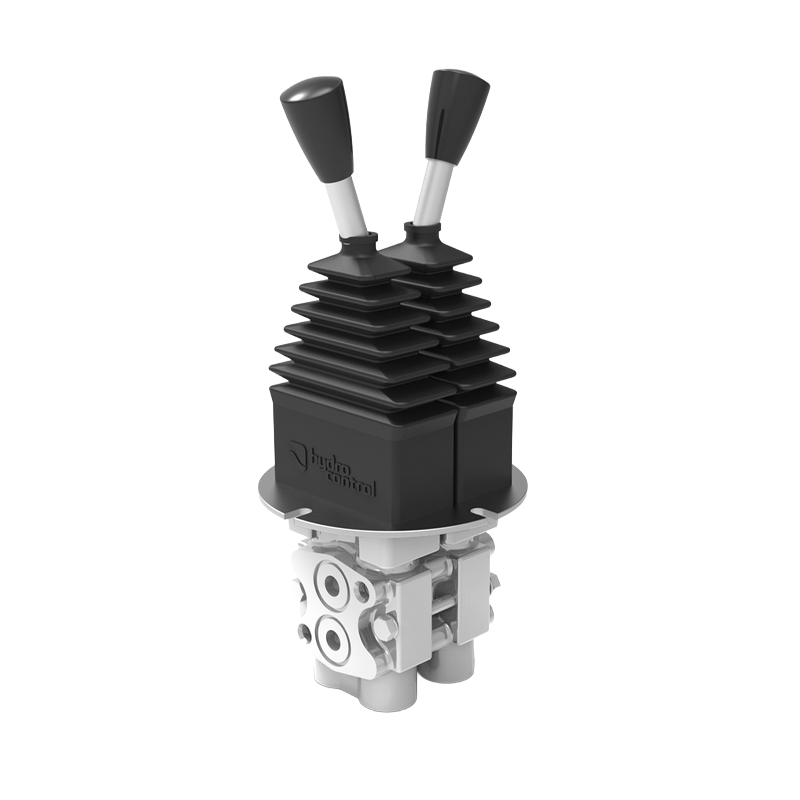

RCB Lever Operated Hydraulic Joystick

Technical Specifications:

Hydraulic Fluid:
Mineral Oil
Maximum input Pressure:
100 bar
Maximum back pressure on tank line:
3 bar
Weight:
3.2kg (7.1 lb)
Working section number:
2

Technical Specifications



• Maximum input pressure: 100 bar
• Maximum back pressure on tank line: 3 bar
• Oil input capacity: 16 l/min
• Hysteresis: 0.9 bar
• Hydraulic fluid: Mineral oil
• Fluid temperature range: -20+80°C
• Fluid viscosity range: 10÷300 Cst
• Recommended filtration: 25 μ Absolute
• Recommended operating pipes: 8mm dia rigid, 1/4” BSP flexible
• Body: Cast Iron
• Plunger: Stainless steel
• Plunger Guide: Brass
• Handles: Microswitch Breaking
• Direct Current Load: Resistive 4.8A/30 VDC
• Alternating Current Load Resistive: 1.5A/250 VAC
• Protection: IP 40



RCB Series

Loading ...




Low operating efforts, low energy consumption and low maintenance makes the RCB hydraulic remote controls ideal for piloting remote control directional valves, pumps, motors, brakes and more.


Technical Specifications:

• Maximum input pressure: 100 bar
• Maximum back pressure on tank line: 3 bar
• Oil input capacity: 16 l/min
• Hysteresis: 0.9 bar
• Hydraulic fluid: Mineral oil
• Fluid temperature range: -20+80°C
• Fluid viscosity range: 10÷300 Cst
• Recommended filtration: 25 μ Absolute
• Recommended operating pipes: 8mm dia rigid, 1/4” BSP flexible
• Body: Cast Iron
• Plunger: Stainless steel
• Plunger Guide: Brass
• Handles: Microswitch Breaking
• Direct Current Load: Resistive 4.8A/30 VDC
• Alternating Current Load Resistive: 1.5A/250 VAC
• Protection: IP 40



RCB Series
