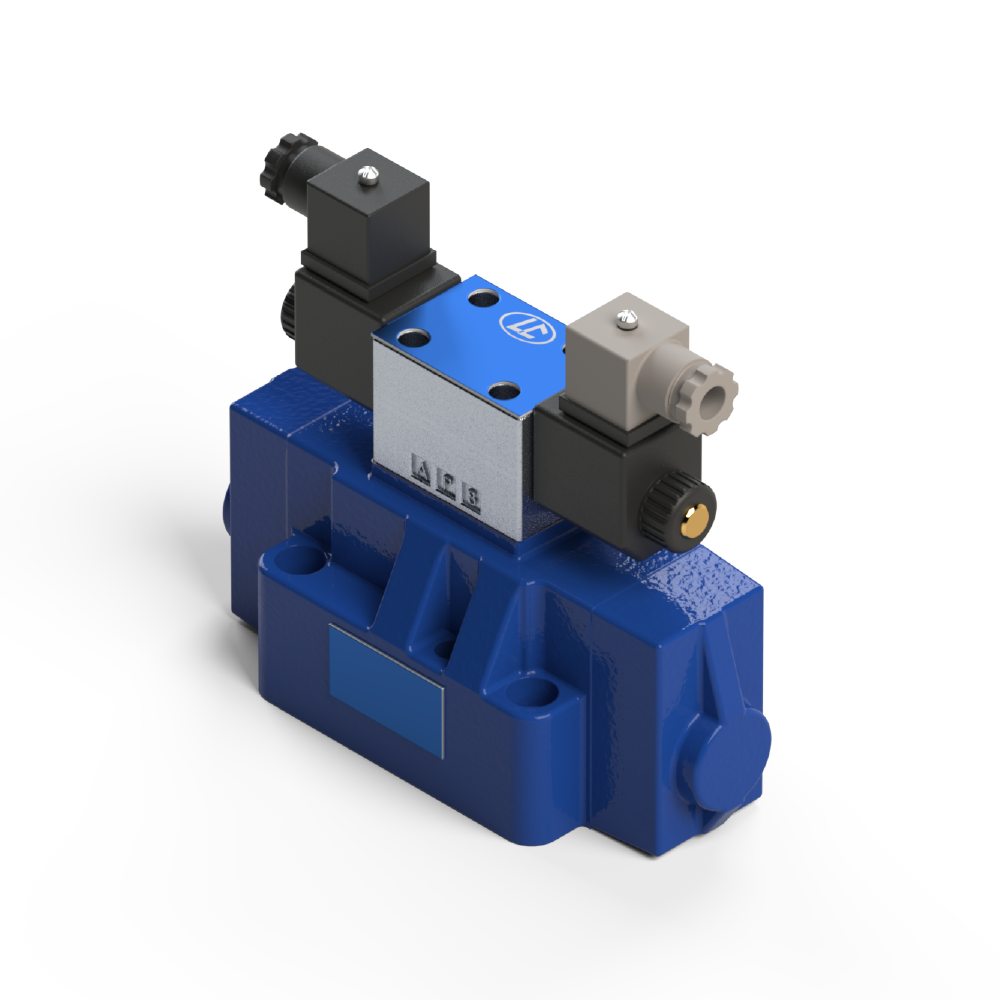

LC35E224DCPIDI – Solenoid Directional Control Valve – On-Off Operated – CETOP 7

Technical Information
Product Code L5310E201OC0110
Spool Type E2
Spool Positioner Spring Centred
Coil Voltage 24v DC
Transition A + B to Tank
Max. Flow (l/min) 250
Max. Operating Pressure (bar) 250
Max. Tank Line Pressure Dynamic (bar) 250
Max. Tank Line Pressure Static (bar) 250
SKU: LC35E224DCPIDI Category:
