Technical Specifications:
-
- Bore: 2.5″-5.0″ in 0.5″ increments
- Maximum shock and surge pressure: 4000 psi (276 bar)
- Working Pressure: 3000 psi (210 bar)

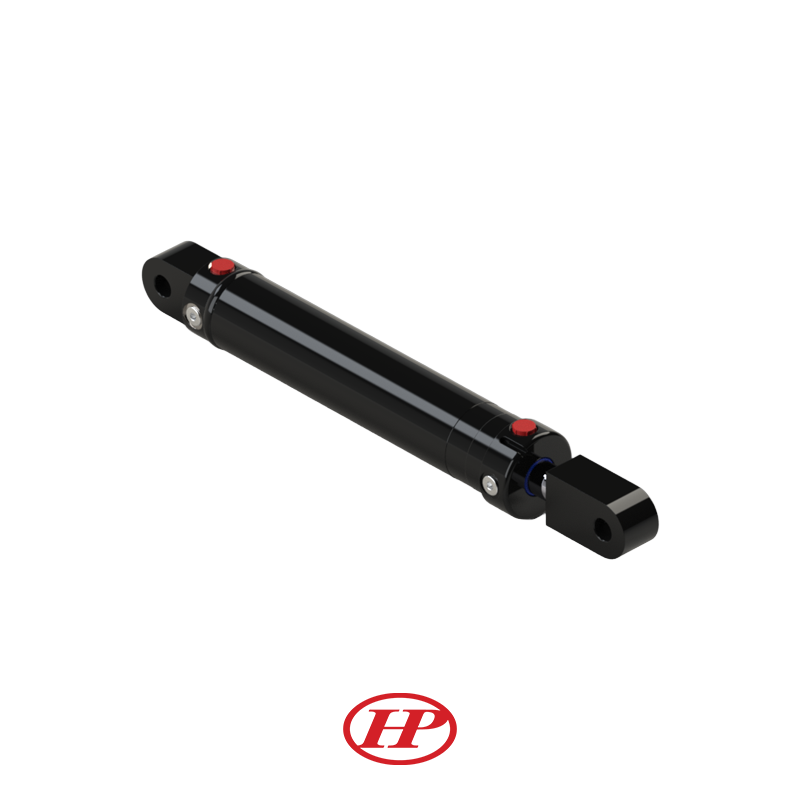

HPSL – Welded Hydraulic Cylinder, Single Lug – Agricultural Style
Specifications
2.50″ Bore Single Lug Welded Hydraulic Cylinders, Screwed Rod Cap
Overview:
-
- Bore: 2.50″ (63.5mm)
- Stroke: 6.00″ (152.4mm)— 48.00″ (1219.2mm)
- Rod Diameter: 1.50
- Port Size: 3/4″ UNO
{"pa_hpsl-25-bore-in":{"title":"Product HPSL 25 - Bore in","view":"select","options":[{"id":3542,"name":"2.50\"","slug":"2-50","title":" 2.50\""}]},"pa_hpsl-25-bore-mm":{"title":"Product HPSL 25 - Bore mm","view":"select","options":[{"id":3543,"name":"63.5mm","slug":"63-5mm","title":" 63.5mm"}]},"pa_hpsl-25-stroke-in":{"title":"Product HPSL 25 - Stroke in","view":"select","options":[{"id":3553,"name":"10.00\"","slug":"10-00","title":" 10.00\""},{"id":3556,"name":"12.00\"","slug":"12-00","title":" 12.00\""},{"id":3559,"name":"14.00\"","slug":"14-00","title":" 14.00\""},{"id":3562,"name":"16.00\"","slug":"16-00","title":" 16.00\""},{"id":3565,"name":"18.00\"","slug":"18-00","title":" 18.00\""},{"id":3568,"name":"20.00\"","slug":"20-00","title":" 20.00\""},{"id":3571,"name":"22.00\"","slug":"22-00","title":" 22.00\""},{"id":3574,"name":"24.00\"","slug":"24-00","title":" 24.00\""},{"id":3577,"name":"26.00\"","slug":"26-00","title":" 26.00\""},{"id":3580,"name":"28.00\"","slug":"28-00","title":" 28.00\""},{"id":3583,"name":"30.00\"","slug":"30-00","title":" 30.00\""},{"id":3586,"name":"32.00\"","slug":"32-00","title":" 32.00\""},{"id":3589,"name":"36.00\"","slug":"36-00","title":" 36.00\""},{"id":3592,"name":"40.00\"","slug":"40-00","title":" 40.00\""},{"id":3595,"name":"48.00\"","slug":"48-00","title":" 48.00\""},{"id":3544,"name":"6.00\"","slug":"6-00","title":" 6.00\""},{"id":3550,"name":"8.00\"","slug":"8-00","title":" 8.00\""}]},"pa_hpsl-25-stroke-mm":{"title":"Product HPSL 25 - Stroke mm","view":"select","options":[{"id":3593,"name":"1016mm","slug":"1016mm","title":" 1016mm"},{"id":3596,"name":"1219mm","slug":"1219mm","title":" 1219mm"},{"id":3545,"name":"152mm","slug":"152mm","title":" 152mm"},{"id":3551,"name":"203mm","slug":"203mm","title":" 203mm"},{"id":3554,"name":"254mm","slug":"254mm","title":" 254mm"},{"id":3557,"name":"305mm","slug":"305mm","title":" 305mm"},{"id":3560,"name":"356mm","slug":"356mm","title":" 356mm"},{"id":3563,"name":"406mm","slug":"406mm","title":" 406mm"},{"id":3566,"name":"457mm","slug":"457mm","title":" 457mm"},{"id":3569,"name":"508mm","slug":"508mm","title":" 508mm"},{"id":3572,"name":"559mm","slug":"559mm","title":" 559mm"},{"id":3575,"name":"610mm","slug":"610mm","title":" 610mm"},{"id":3578,"name":"660mm","slug":"660mm","title":" 660mm"},{"id":3581,"name":"711mm","slug":"711mm","title":" 711mm"},{"id":3584,"name":"762mm","slug":"762mm","title":" 762mm"},{"id":3587,"name":"813mm","slug":"813mm","title":" 813mm"},{"id":3590,"name":"914mm","slug":"914mm","title":" 914mm"}]},"pa_hpsl-25-rod-dia":{"title":"Product HPSL 25 - Rod Dia","view":"select","options":[{"id":3546,"name":"1.50\"","slug":"1-50","title":" 1.50\""}]},"pa_hpsl-25-closed-centre":{"title":"Product HPSL 25 - Closed Centre","view":"select","options":[{"id":3547,"name":"18.25\"","slug":"18-25","title":" 18.25\""},{"id":3552,"name":"20.25\"","slug":"20-25","title":" 20.25\""},{"id":3555,"name":"22.25\"","slug":"22-25","title":" 22.25\""},{"id":3558,"name":"24.25\"","slug":"24-25","title":" 24.25\""},{"id":3561,"name":"26.25\"","slug":"26-25","title":" 26.25\""},{"id":3564,"name":"28.25\"","slug":"28-25","title":" 28.25\""},{"id":3567,"name":"30.25\"","slug":"30-25","title":" 30.25\""},{"id":3570,"name":"32.25\"","slug":"32-25","title":" 32.25\""},{"id":3573,"name":"34.25\"","slug":"34-25","title":" 34.25\""},{"id":3576,"name":"36.25\"","slug":"36-25","title":" 36.25\""},{"id":3579,"name":"38.25\"","slug":"38-25","title":" 38.25\""},{"id":3582,"name":"40.25\"","slug":"40-25","title":" 40.25\""},{"id":3585,"name":"42.25\"","slug":"42-25","title":" 42.25\""},{"id":3588,"name":"44.25\"","slug":"44-25","title":" 44.25\""},{"id":3591,"name":"48.25\"","slug":"48-25","title":" 48.25\""},{"id":3594,"name":"52.25\"","slug":"52-25","title":" 52.25\""},{"id":3597,"name":"60.25\"","slug":"60-25","title":" 60.25\""}]},"pa_hpsl-25-port-size":{"title":"Product HPSL 25 - Port Size","view":"select","options":[{"id":3548,"name":"3\/4\" UNO","slug":"3-4-uno","title":" 3\/4\" UNO"}]}}
Loading ...
{"mode":"ajax","ajax_url":"https:\/\/dev.crosshydraulics.co.nz\/wp-admin\/admin-ajax.php","selected_lang":"en_AU","table_data":[],"heads":{"sku":"Stock Number","pa_hpsl-25-bore-in":"Bore in","pa_hpsl-25-bore-mm":"Bore mm","pa_hpsl-25-stroke-in":"Stroke in","pa_hpsl-25-stroke-mm":"Stroke mm","pa_hpsl-25-rod-dia":"Rod Dia in","pa_hpsl-25-closed-centre":"Closed Centre in","pa_hpsl-25-port-size":"Port Size","thumbnail":"Click Image to View Product"},"hide_on_mobile":[],"cells_width":["auto","auto","auto","auto","auto","auto","auto","auto","auto"],"orders":{"id":"desc","post_title":"asc","post_status":"asc","post_date":"desc","post_modified":"desc","comment_count":"desc","price":"asc","regular_price":"asc","sale_price":"asc","sku":"asc","downloadable":"asc","weight":"asc","length":"asc","height":"asc","width":"asc","manage_stock":"asc","stock_status":"asc","stock_quantity":"asc","sold_individually":"asc","total_sales":"asc","review_count":"asc","menu_order":"asc","average_rating":"asc"},"editable":[],"custom_field_keys":[],"total_rows_count":20,"use_load_more":1,"css_classes":"","no_found_text":"","show_print_btn":0,"post_id":0,"compact_view_width":-1,"stop_notice":"","use_flow_header":1,"style":"","skin":"","pagination":{"position":"tb","next":{"class":"woot-btn","content":">"},"prev":{"class":"woot-btn","content":"<"},"input":{"class":"woot-form-control"}},"lang":{"loading":"Loading ...","no_data":"No Data!","error":"Error!","items":"Products","page":"Page","pages":"Pages","load_more":"Load More"},"per_page_sel_position":"tb","per_page_sel_pp":["10","20","30","40","50","60","70","80","90","100"],"print_css_url":"https:\/\/dev.crosshydraulics.co.nz\/wp-content\/plugins\/woot-products-tables\/assets\/css\/print.css","request_data":{"action":"woot_get_table_data","fields":["sku","pa_hpsl-25-bore-in","pa_hpsl-25-bore-mm","pa_hpsl-25-stroke-in","pa_hpsl-25-stroke-mm","pa_hpsl-25-rod-dia","pa_hpsl-25-closed-centre","pa_hpsl-25-port-size","thumbnail"],"post_type":"product","wp_columns_actions":"woot_woocommerce_tables","table_id":228,"predefinition":"{\u0022rules\u0022:{\u0022by_taxonomy\u0022:\u0022product_cat:3549\u0022}}","filter_data":"","filter_provider":"woocommerce","orderby":"sku","order":"asc","per_page":20,"current_page":0,"shortcode_args_set":"{\u0022id\u0022:\u0022228\u0022,\u0022action\u0022:\u0022woot_woocommerce_tables\u0022,\u0022no_found_text\u0022:\u0022\u0022,\u0022use_flow_header\u0022:1}","woot_link_get_data":"[]"}}
3.00” Bore Single Lug Welded Hydraulic Cylinders, Screwed Rod Cap
Overview:
- Bore: 3.00″ (76.2mm)
- Stroke: 6.00″ (152.4mm)— 48.00″ (1219.2mm)
- Rod Diameter: 1.50″
- Port Size: 3/4″ UNO
{"pa_hpsl-30-bore-in":{"title":"Product HPSL 30 - Bore in","view":"select","options":[{"id":3609,"name":"3.00\"","slug":"3-00","title":" 3.00\""}]},"pa_hpsl-30-bore-mm":{"title":"Product HPSL 30 - Bore mm","view":"select","options":[{"id":3610,"name":"76.2mm","slug":"76-2mm","title":" 76.2mm"}]},"pa_hpsl-30-stroke-in":{"title":"Product HPSL 30 - Stroke in","view":"select","options":[{"id":3620,"name":"10.00\"","slug":"10-00","title":" 10.00\""},{"id":3623,"name":"12.00\"","slug":"12-00","title":" 12.00\""},{"id":3626,"name":"14.00\"","slug":"14-00","title":" 14.00\""},{"id":3629,"name":"16.00\"","slug":"16-00","title":" 16.00\""},{"id":3632,"name":"18.00\"","slug":"18-00","title":" 18.00\""},{"id":3635,"name":"20.00\"","slug":"20-00","title":" 20.00\""},{"id":3638,"name":"22.00\"","slug":"22-00","title":" 22.00\""},{"id":3641,"name":"24.00\"","slug":"24-00","title":" 24.00\""},{"id":3644,"name":"26.00\"","slug":"26-00","title":" 26.00\""},{"id":3647,"name":"28.00\"","slug":"28-00","title":" 28.00\""},{"id":3650,"name":"30.00\"","slug":"30-00","title":" 30.00\""},{"id":3653,"name":"32.00\"","slug":"32-00","title":" 32.00\""},{"id":3656,"name":"36.00\"","slug":"36-00","title":" 36.00\""},{"id":3659,"name":"40.00\"","slug":"40-00","title":" 40.00\""},{"id":3662,"name":"48.00\"","slug":"48-00","title":" 48.00\""},{"id":3611,"name":"6.00\"","slug":"6-00","title":" 6.00\""},{"id":3617,"name":"8.00\"","slug":"8-00","title":" 8.00\""}]},"pa_hpsl-30-stroke-mm":{"title":"Product HPSL 30 - Stroke mm","view":"select","options":[{"id":3660,"name":"1016mm","slug":"1016mm","title":" 1016mm"},{"id":3663,"name":"1219mm","slug":"1219mm","title":" 1219mm"},{"id":3612,"name":"152mm","slug":"152mm","title":" 152mm"},{"id":3618,"name":"203mm","slug":"203mm","title":" 203mm"},{"id":3621,"name":"254mm","slug":"254mm","title":" 254mm"},{"id":3624,"name":"305mm","slug":"305mm","title":" 305mm"},{"id":3627,"name":"356mm","slug":"356mm","title":" 356mm"},{"id":3630,"name":"406mm","slug":"406mm","title":" 406mm"},{"id":3633,"name":"457mm","slug":"457mm","title":" 457mm"},{"id":3636,"name":"508mm","slug":"508mm","title":" 508mm"},{"id":3639,"name":"559mm","slug":"559mm","title":" 559mm"},{"id":3642,"name":"610mm","slug":"610mm","title":" 610mm"},{"id":3645,"name":"660mm","slug":"660mm","title":" 660mm"},{"id":3648,"name":"711mm","slug":"711mm","title":" 711mm"},{"id":3651,"name":"762mm","slug":"762mm","title":" 762mm"},{"id":3654,"name":"813mm","slug":"813mm","title":" 813mm"},{"id":3657,"name":"914mm","slug":"914mm","title":" 914mm"}]},"pa_hpsl-30-rod-dia-in":{"title":"Product HPSL 30 - Rod Dia in","view":"select","options":[{"id":3613,"name":"1.50\"","slug":"1-50","title":" 1.50\""}]},"pa_hpsl-30-closed-centre":{"title":"Product HPSL 30 - Closed Centre","view":"select","options":[{"id":3614,"name":"18.25\"","slug":"18-25","title":" 18.25\""},{"id":3619,"name":"20.25\"","slug":"20-25","title":" 20.25\""},{"id":3622,"name":"22.25\"","slug":"22-25","title":" 22.25\""},{"id":3625,"name":"24.25\"","slug":"24-25","title":" 24.25\""},{"id":3628,"name":"26.25\"","slug":"26-25","title":" 26.25\""},{"id":3631,"name":"28.25\"","slug":"28-25","title":" 28.25\""},{"id":3634,"name":"30.25\"","slug":"30-25","title":" 30.25\""},{"id":3637,"name":"32.25\"","slug":"32-25","title":" 32.25\""},{"id":3640,"name":"34.25\"","slug":"34-25","title":" 34.25\""},{"id":3643,"name":"36.25\"","slug":"36-25","title":" 36.25\""},{"id":3646,"name":"38.25\"","slug":"38-25","title":" 38.25\""},{"id":3649,"name":"40.25\"","slug":"40-25","title":" 40.25\""},{"id":3652,"name":"42.25\"","slug":"42-25","title":" 42.25\""},{"id":3655,"name":"44.25\"","slug":"44-25","title":" 44.25\""},{"id":3658,"name":"48.25\"","slug":"48-25","title":" 48.25\""},{"id":3661,"name":"52.25\"","slug":"52-25","title":" 52.25\""},{"id":3664,"name":"60.25\"","slug":"60-25","title":" 60.25\""}]},"pa_hpsl-30-port-size":{"title":"Product HPSL 30 - Port Size","view":"select","options":[{"id":3615,"name":"3\/4\" UNO","slug":"3-4-uno","title":" 3\/4\" UNO"}]}}
Loading ...
{"mode":"ajax","ajax_url":"https:\/\/dev.crosshydraulics.co.nz\/wp-admin\/admin-ajax.php","selected_lang":"en_AU","table_data":[],"heads":{"sku":"Stock Number","pa_hpsl-30-bore-in":"Bore in","pa_hpsl-30-bore-mm":"Bore mm","pa_hpsl-30-stroke-in":"Stroke in","pa_hpsl-30-stroke-mm":"Stroke mm","pa_hpsl-30-rod-dia-in":"Rod Dia in","pa_hpsl-30-closed-centre":"Closed Centre in","pa_hpsl-30-port-size":"Port Size","thumbnail":"Click Image to View Product"},"hide_on_mobile":[],"cells_width":["auto","auto","auto","auto","auto","auto","auto","auto","auto"],"orders":{"id":"desc","post_title":"asc","post_status":"asc","post_date":"desc","post_modified":"desc","comment_count":"desc","price":"asc","regular_price":"asc","sale_price":"asc","sku":"asc","downloadable":"asc","weight":"asc","length":"asc","height":"asc","width":"asc","manage_stock":"asc","stock_status":"asc","stock_quantity":"asc","sold_individually":"asc","total_sales":"asc","review_count":"asc","menu_order":"asc","average_rating":"asc"},"editable":[],"custom_field_keys":[],"total_rows_count":20,"use_load_more":1,"css_classes":"","no_found_text":"","show_print_btn":0,"post_id":0,"compact_view_width":-1,"stop_notice":"","use_flow_header":1,"style":"","skin":"","pagination":{"position":"tb","next":{"class":"woot-btn","content":">"},"prev":{"class":"woot-btn","content":"<"},"input":{"class":"woot-form-control"}},"lang":{"loading":"Loading ...","no_data":"No Data!","error":"Error!","items":"Products","page":"Page","pages":"Pages","load_more":"Load More"},"per_page_sel_position":"tb","per_page_sel_pp":["10","20","30","40","50","60","70","80","90","100"],"print_css_url":"https:\/\/dev.crosshydraulics.co.nz\/wp-content\/plugins\/woot-products-tables\/assets\/css\/print.css","request_data":{"action":"woot_get_table_data","fields":["sku","pa_hpsl-30-bore-in","pa_hpsl-30-bore-mm","pa_hpsl-30-stroke-in","pa_hpsl-30-stroke-mm","pa_hpsl-30-rod-dia-in","pa_hpsl-30-closed-centre","pa_hpsl-30-port-size","thumbnail"],"post_type":"product","wp_columns_actions":"woot_woocommerce_tables","table_id":229,"predefinition":"{\u0022rules\u0022:{\u0022by_taxonomy\u0022:\u0022product_cat:3616\u0022}}","filter_data":"","filter_provider":"woocommerce","orderby":"sku","order":"asc","per_page":20,"current_page":0,"shortcode_args_set":"{\u0022id\u0022:\u0022229\u0022,\u0022action\u0022:\u0022woot_woocommerce_tables\u0022,\u0022no_found_text\u0022:\u0022\u0022,\u0022use_flow_header\u0022:1}","woot_link_get_data":"[]"}}
3.50” Bore Single Lug Welded Hydraulic Cylinders, Screwed Rod Cap
Overview:
- Bore: 3.50″ (88.9mm)
- Stroke: 6.00″ (152.4mm)— 48.00″ (1219.2mm)
- Rod Diameter: 1.75″
- Port Size: 7/8″ UNO
{"pa_hpsl-35-bore-in":{"title":"Product HPSL 35 - Bore in","view":"select","options":[{"id":3665,"name":"3.50\"","slug":"3-50","title":" 3.50\""}]},"pa_hpsl-35-bore-mm":{"title":"Product HPSL 35 - Bore mm","view":"select","options":[{"id":3666,"name":"88.9mm","slug":"88-9mm","title":" 88.9mm"}]},"pa_hpsl-35-stroke-in":{"title":"Product HPSL 35 - Stroke in","view":"select","options":[{"id":3676,"name":"10.00\"","slug":"10-00","title":" 10.00\""},{"id":3679,"name":"12.00\"","slug":"12-00","title":" 12.00\""},{"id":3682,"name":"14.00\"","slug":"14-00","title":" 14.00\""},{"id":3685,"name":"16.00\"","slug":"16-00","title":" 16.00\""},{"id":3688,"name":"18.00\"","slug":"18-00","title":" 18.00\""},{"id":3691,"name":"20.00\"","slug":"20-00","title":" 20.00\""},{"id":3694,"name":"22.00\"","slug":"22-00","title":" 22.00\""},{"id":3697,"name":"24.00\"","slug":"24-00","title":" 24.00\""},{"id":3700,"name":"26.00\"","slug":"26-00","title":" 26.00\""},{"id":3703,"name":"28.00\"","slug":"28-00","title":" 28.00\""},{"id":3706,"name":"30.00\"","slug":"30-00","title":" 30.00\""},{"id":3709,"name":"32.00\"","slug":"32-00","title":" 32.00\""},{"id":3712,"name":"36.00\"","slug":"36-00","title":" 36.00\""},{"id":3715,"name":"40.00\"","slug":"40-00","title":" 40.00\""},{"id":3718,"name":"48.00\"","slug":"48-00","title":" 48.00\""},{"id":3667,"name":"6.00\"","slug":"6-00","title":" 6.00\""},{"id":3673,"name":"8.00\"","slug":"8-00","title":" 8.00\""}]},"pa_hpsl-35-stroke-mm":{"title":"Product HPSL 35 - Stroke mm","view":"select","options":[{"id":3716,"name":"1016mm","slug":"1016mm","title":" 1016mm"},{"id":3719,"name":"1219mm","slug":"1219mm","title":" 1219mm"},{"id":3668,"name":"152mm","slug":"152mm","title":" 152mm"},{"id":3674,"name":"203mm","slug":"203mm","title":" 203mm"},{"id":3677,"name":"254mm","slug":"254mm","title":" 254mm"},{"id":3680,"name":"305mm","slug":"305mm","title":" 305mm"},{"id":3683,"name":"356mm","slug":"356mm","title":" 356mm"},{"id":3686,"name":"406mm","slug":"406mm","title":" 406mm"},{"id":3689,"name":"457mm","slug":"457mm","title":" 457mm"},{"id":3692,"name":"508mm","slug":"508mm","title":" 508mm"},{"id":3695,"name":"559mm","slug":"559mm","title":" 559mm"},{"id":3698,"name":"610mm","slug":"610mm","title":" 610mm"},{"id":3701,"name":"660mm","slug":"660mm","title":" 660mm"},{"id":3704,"name":"711mm","slug":"711mm","title":" 711mm"},{"id":3707,"name":"762mm","slug":"762mm","title":" 762mm"},{"id":3710,"name":"813mm","slug":"813mm","title":" 813mm"},{"id":3713,"name":"914mm","slug":"914mm","title":" 914mm"}]},"pa_hpsl-35-rod-dia-in":{"title":"Product HPSL 35 - Rod Dia in","view":"select","options":[{"id":3669,"name":"1.75\"","slug":"1-75","title":" 1.75\""}]},"pa_hpsl-35-closed-centre":{"title":"Product HPSL 35 - Closed Centre","view":"select","options":[{"id":3670,"name":"18.25\"","slug":"18-25","title":" 18.25\""},{"id":3675,"name":"20.25\"","slug":"20-25","title":" 20.25\""},{"id":3678,"name":"22.25\"","slug":"22-25","title":" 22.25\""},{"id":3681,"name":"24.25\"","slug":"24-25","title":" 24.25\""},{"id":3684,"name":"26.25\"","slug":"26-25","title":" 26.25\""},{"id":3687,"name":"28.25\"","slug":"28-25","title":" 28.25\""},{"id":3690,"name":"30.25\"","slug":"30-25","title":" 30.25\""},{"id":3693,"name":"32.25\"","slug":"32-25","title":" 32.25\""},{"id":3696,"name":"34.25\"","slug":"34-25","title":" 34.25\""},{"id":3699,"name":"36.25\"","slug":"36-25","title":" 36.25\""},{"id":3702,"name":"38.25\"","slug":"38-25","title":" 38.25\""},{"id":3705,"name":"40.25\"","slug":"40-25","title":" 40.25\""},{"id":3708,"name":"42.25\"","slug":"42-25","title":" 42.25\""},{"id":3711,"name":"44.25\"","slug":"44-25","title":" 44.25\""},{"id":3714,"name":"48.25\"","slug":"48-25","title":" 48.25\""},{"id":3717,"name":"52.25\"","slug":"52-25","title":" 52.25\""},{"id":3720,"name":"60.25\"","slug":"60-25","title":" 60.25\""}]},"pa_hpsl-35-port-size":{"title":"Product HPSL 35 - Port Size","view":"select","options":[{"id":3671,"name":"7\/8\" UNO","slug":"7-8-uno","title":" 7\/8\" UNO"}]}}
Loading ...
{"mode":"ajax","ajax_url":"https:\/\/dev.crosshydraulics.co.nz\/wp-admin\/admin-ajax.php","selected_lang":"en_AU","table_data":[],"heads":{"sku":"Stock Number","pa_hpsl-35-bore-in":"Bore in","pa_hpsl-35-bore-mm":"Bore mm","pa_hpsl-35-stroke-in":"Stroke in","pa_hpsl-35-stroke-mm":"Stroke mm","pa_hpsl-35-rod-dia-in":"Rod Dia in","pa_hpsl-35-closed-centre":"Closed Centre in","pa_hpsl-35-port-size":"Port Size","thumbnail":"Click Image to View Product"},"hide_on_mobile":[],"cells_width":["auto","auto","auto","auto","auto","auto","auto","auto","auto"],"orders":{"id":"desc","post_title":"asc","post_status":"asc","post_date":"desc","post_modified":"desc","comment_count":"desc","price":"asc","regular_price":"asc","sale_price":"asc","sku":"asc","downloadable":"asc","weight":"asc","length":"asc","height":"asc","width":"asc","manage_stock":"asc","stock_status":"asc","stock_quantity":"asc","sold_individually":"asc","total_sales":"asc","review_count":"asc","menu_order":"asc","average_rating":"asc"},"editable":[],"custom_field_keys":[],"total_rows_count":20,"use_load_more":1,"css_classes":"","no_found_text":"","show_print_btn":0,"post_id":0,"compact_view_width":-1,"stop_notice":"","use_flow_header":1,"style":"","skin":"","pagination":{"position":"tb","next":{"class":"woot-btn","content":">"},"prev":{"class":"woot-btn","content":"<"},"input":{"class":"woot-form-control"}},"lang":{"loading":"Loading ...","no_data":"No Data!","error":"Error!","items":"Products","page":"Page","pages":"Pages","load_more":"Load More"},"per_page_sel_position":"tb","per_page_sel_pp":["10","20","30","40","50","60","70","80","90","100"],"print_css_url":"https:\/\/dev.crosshydraulics.co.nz\/wp-content\/plugins\/woot-products-tables\/assets\/css\/print.css","request_data":{"action":"woot_get_table_data","fields":["sku","pa_hpsl-35-bore-in","pa_hpsl-35-bore-mm","pa_hpsl-35-stroke-in","pa_hpsl-35-stroke-mm","pa_hpsl-35-rod-dia-in","pa_hpsl-35-closed-centre","pa_hpsl-35-port-size","thumbnail"],"post_type":"product","wp_columns_actions":"woot_woocommerce_tables","table_id":230,"predefinition":"{\u0022rules\u0022:{\u0022by_taxonomy\u0022:\u0022product_cat:3672\u0022}}","filter_data":"","filter_provider":"woocommerce","orderby":"sku","order":"asc","per_page":20,"current_page":0,"shortcode_args_set":"{\u0022id\u0022:\u0022230\u0022,\u0022action\u0022:\u0022woot_woocommerce_tables\u0022,\u0022no_found_text\u0022:\u0022\u0022,\u0022use_flow_header\u0022:1}","woot_link_get_data":"[]"}}
4.00” Bore Single Lug Welded Hydraulic Cylinders, Screwed Rod Cap
Overview:
- Bore: 4.00″ (101.6mm)
- Stroke: 6.00″ (152.4mm)— 48.00″ (1219.2mm)
- Rod Diameter: 2.00″
- Port Size: 7/8″ UNO
{"pa_hpsl-40-bore-in":{"title":"Product HPSL 40 - Bore in","view":"select","options":[{"id":3758,"name":"4.00\"","slug":"4-00","title":" 4.00\""}]},"pa_hpsl-40-bore-mm":{"title":"Product HPSL 40 - Bore mm","view":"select","options":[{"id":3759,"name":"101.6mm","slug":"101-6mm","title":" 101.6mm"}]},"pa_hpsl-40-stroke-in":{"title":"Product HPSL 40 - Stroke in","view":"select","options":[{"id":3769,"name":"10.00\"","slug":"10-00","title":" 10.00\""},{"id":3772,"name":"12.00\"","slug":"12-00","title":" 12.00\""},{"id":3775,"name":"14.00\"","slug":"14-00","title":" 14.00\""},{"id":3778,"name":"16.00\"","slug":"16-00","title":" 16.00\""},{"id":3781,"name":"18.00\"","slug":"18-00","title":" 18.00\""},{"id":3784,"name":"20.00\"","slug":"20-00","title":" 20.00\""},{"id":3787,"name":"22.00\"","slug":"22-00","title":" 22.00\""},{"id":3790,"name":"24.00\"","slug":"24-00","title":" 24.00\""},{"id":3793,"name":"26.00\"","slug":"26-00","title":" 26.00\""},{"id":3796,"name":"28.00\"","slug":"28-00","title":" 28.00\""},{"id":3799,"name":"30.00\"","slug":"30-00","title":" 30.00\""},{"id":3802,"name":"32.00\"","slug":"32-00","title":" 32.00\""},{"id":3805,"name":"36.00\"","slug":"36-00","title":" 36.00\""},{"id":3808,"name":"40.00\"","slug":"40-00","title":" 40.00\""},{"id":3811,"name":"48.00\"","slug":"48-00","title":" 48.00\""},{"id":3760,"name":"6.00\"","slug":"6-00","title":" 6.00\""},{"id":3766,"name":"8.00\"","slug":"8-00","title":" 8.00\""}]},"pa_hpsl-40-stroke-mm":{"title":"Product HPSL 40 - Stroke mm","view":"select","options":[{"id":3809,"name":"1016mm","slug":"1016mm","title":" 1016mm"},{"id":3812,"name":"1219mm","slug":"1219mm","title":" 1219mm"},{"id":3761,"name":"152mm","slug":"152mm","title":" 152mm"},{"id":3767,"name":"203mm","slug":"203mm","title":" 203mm"},{"id":3770,"name":"254mm","slug":"254mm","title":" 254mm"},{"id":3773,"name":"305mm","slug":"305mm","title":" 305mm"},{"id":3776,"name":"356mm","slug":"356mm","title":" 356mm"},{"id":3779,"name":"406mm","slug":"406mm","title":" 406mm"},{"id":3782,"name":"457mm","slug":"457mm","title":" 457mm"},{"id":3785,"name":"508mm","slug":"508mm","title":" 508mm"},{"id":3788,"name":"559mm","slug":"559mm","title":" 559mm"},{"id":3791,"name":"610mm","slug":"610mm","title":" 610mm"},{"id":3794,"name":"660mm","slug":"660mm","title":" 660mm"},{"id":3797,"name":"711mm","slug":"711mm","title":" 711mm"},{"id":3800,"name":"762mm","slug":"762mm","title":" 762mm"},{"id":3803,"name":"813mm","slug":"813mm","title":" 813mm"},{"id":3806,"name":"914mm","slug":"914mm","title":" 914mm"}]},"pa_hpsl-40-rod-dia":{"title":"Product HPSL 40 - Rod Dia","view":"select","options":[{"id":3762,"name":"2.00\"","slug":"2-00","title":" 2.00\""}]},"pa_hpsl-40-closed-centre":{"title":"Product HPSL 40 - Closed Centre","view":"select","options":[{"id":3763,"name":"18.25\"","slug":"18-25","title":" 18.25\""},{"id":3768,"name":"20.25\"","slug":"20-25","title":" 20.25\""},{"id":3771,"name":"22.25\"","slug":"22-25","title":" 22.25\""},{"id":3774,"name":"24.25\"","slug":"24-25","title":" 24.25\""},{"id":3777,"name":"26.25\"","slug":"26-25","title":" 26.25\""},{"id":3780,"name":"28.25\"","slug":"28-25","title":" 28.25\""},{"id":3783,"name":"30.25\"","slug":"30-25","title":" 30.25\""},{"id":3786,"name":"32.25\"","slug":"32-25","title":" 32.25\""},{"id":3789,"name":"34.25\"","slug":"34-25","title":" 34.25\""},{"id":3792,"name":"36.25\"","slug":"36-25","title":" 36.25\""},{"id":3795,"name":"38.25\"","slug":"38-25","title":" 38.25\""},{"id":3798,"name":"40.25\"","slug":"40-25","title":" 40.25\""},{"id":3801,"name":"42.25\"","slug":"42-25","title":" 42.25\""},{"id":3804,"name":"44.25\"","slug":"44-25","title":" 44.25\""},{"id":3807,"name":"48.25\"","slug":"48-25","title":" 48.25\""},{"id":3810,"name":"52.25\"","slug":"52-25","title":" 52.25\""},{"id":3813,"name":"60.25\"","slug":"60-25","title":" 60.25\""}]},"pa_hpsl-40-port-size":{"title":"Product HPSL 40 - Port Size","view":"select","options":[{"id":3764,"name":"7\/8\" UNO","slug":"7-8-uno","title":" 7\/8\" UNO"}]}}
Loading ...
{"mode":"ajax","ajax_url":"https:\/\/dev.crosshydraulics.co.nz\/wp-admin\/admin-ajax.php","selected_lang":"en_AU","table_data":[],"heads":{"sku":"Stock Number","pa_hpsl-40-bore-in":"Bore in","pa_hpsl-40-bore-mm":"Bore mm","pa_hpsl-40-stroke-in":"Stroke in","pa_hpsl-40-stroke-mm":"Stroke mm","pa_hpsl-40-rod-dia":"Rod Dia in","pa_hpsl-40-closed-centre":"Closed Centre in","pa_hpsl-40-port-size":"Port Size","thumbnail":"Click Image to View Product"},"hide_on_mobile":[],"cells_width":["auto","auto","auto","auto","auto","auto","auto","auto","auto"],"orders":{"id":"desc","post_title":"asc","post_status":"asc","post_date":"desc","post_modified":"desc","comment_count":"desc","price":"asc","regular_price":"asc","sale_price":"asc","sku":"asc","downloadable":"asc","weight":"asc","length":"asc","height":"asc","width":"asc","manage_stock":"asc","stock_status":"asc","stock_quantity":"asc","sold_individually":"asc","total_sales":"asc","review_count":"asc","menu_order":"asc","average_rating":"asc"},"editable":[],"custom_field_keys":[],"total_rows_count":20,"use_load_more":1,"css_classes":"","no_found_text":"","show_print_btn":0,"post_id":0,"compact_view_width":-1,"stop_notice":"","use_flow_header":1,"style":"","skin":"","pagination":{"position":"tb","next":{"class":"woot-btn","content":">"},"prev":{"class":"woot-btn","content":"<"},"input":{"class":"woot-form-control"}},"lang":{"loading":"Loading ...","no_data":"No Data!","error":"Error!","items":"Products","page":"Page","pages":"Pages","load_more":"Load More"},"per_page_sel_position":"tb","per_page_sel_pp":["10","20","30","40","50","60","70","80","90","100"],"print_css_url":"https:\/\/dev.crosshydraulics.co.nz\/wp-content\/plugins\/woot-products-tables\/assets\/css\/print.css","request_data":{"action":"woot_get_table_data","fields":["sku","pa_hpsl-40-bore-in","pa_hpsl-40-bore-mm","pa_hpsl-40-stroke-in","pa_hpsl-40-stroke-mm","pa_hpsl-40-rod-dia","pa_hpsl-40-closed-centre","pa_hpsl-40-port-size","thumbnail"],"post_type":"product","wp_columns_actions":"woot_woocommerce_tables","table_id":231,"predefinition":"{\u0022rules\u0022:{\u0022by_taxonomy\u0022:\u0022product_cat:3814\u0022}}","filter_data":"","filter_provider":"woocommerce","orderby":"sku","order":"asc","per_page":20,"current_page":0,"shortcode_args_set":"{\u0022id\u0022:\u0022231\u0022,\u0022action\u0022:\u0022woot_woocommerce_tables\u0022,\u0022no_found_text\u0022:\u0022\u0022,\u0022use_flow_header\u0022:1}","woot_link_get_data":"[]"}}
4.50” Bore Single Lug Welded Hydraulic Cylinders, Screwed Rod Cap
Overview:
- Bore: 4.50″ (114.3mm)
- Stroke: 6.00″ (152.4mm)— 48.00″ (1219.2mm)
- Rod Diameter: 2.00″
- Port Size: 7/8″ UNO
{"pa_hpsl-45-bore-in":{"title":"Product HPSL 45 - Bore in","view":"select","options":[{"id":3815,"name":"4.50\"","slug":"4-50","title":" 4.50\""}]},"pa_hpsl-45-bore-mm":{"title":"Product HPSL 45 - Bore mm","view":"select","options":[{"id":3816,"name":"114.3mm","slug":"114-3mm","title":" 114.3mm"}]},"pa_hpsl-45-stroke-in":{"title":"Product HPSL 45 - Stroke in","view":"select","options":[{"id":3826,"name":"10.00\"","slug":"10-00","title":" 10.00\""},{"id":3829,"name":"12.00\"","slug":"12-00","title":" 12.00\""},{"id":3832,"name":"14.00\"","slug":"14-00","title":" 14.00\""},{"id":3835,"name":"16.00\"","slug":"16-00","title":" 16.00\""},{"id":3838,"name":"18.00\"","slug":"18-00","title":" 18.00\""},{"id":3841,"name":"20.00\"","slug":"20-00","title":" 20.00\""},{"id":3844,"name":"22.00\"","slug":"22-00","title":" 22.00\""},{"id":3847,"name":"24.00\"","slug":"24-00","title":" 24.00\""},{"id":3850,"name":"26.00\"","slug":"26-00","title":" 26.00\""},{"id":3853,"name":"28.00\"","slug":"28-00","title":" 28.00\""},{"id":3856,"name":"30.00\"","slug":"30-00","title":" 30.00\""},{"id":3859,"name":"32.00\"","slug":"32-00","title":" 32.00\""},{"id":3862,"name":"36.00\"","slug":"36-00","title":" 36.00\""},{"id":3865,"name":"40.00\"","slug":"40-00","title":" 40.00\""},{"id":3868,"name":"48.00\"","slug":"48-00","title":" 48.00\""},{"id":3817,"name":"6.00\"","slug":"6-00","title":" 6.00\""},{"id":3823,"name":"8.00\"","slug":"8-00","title":" 8.00\""}]},"pa_hpsl-45-stroke-mm":{"title":"Product HPSL 45 - Stroke mm","view":"select","options":[{"id":3866,"name":"1016mm","slug":"1016mm","title":" 1016mm"},{"id":3869,"name":"1219mm","slug":"1219mm","title":" 1219mm"},{"id":3818,"name":"152mm","slug":"152mm","title":" 152mm"},{"id":3824,"name":"203mm","slug":"203mm","title":" 203mm"},{"id":3827,"name":"254mm","slug":"254mm","title":" 254mm"},{"id":3830,"name":"305mm","slug":"305mm","title":" 305mm"},{"id":3833,"name":"356mm","slug":"356mm","title":" 356mm"},{"id":3836,"name":"406mm","slug":"406mm","title":" 406mm"},{"id":3839,"name":"457mm","slug":"457mm","title":" 457mm"},{"id":3842,"name":"508mm","slug":"508mm","title":" 508mm"},{"id":3845,"name":"559mm","slug":"559mm","title":" 559mm"},{"id":3848,"name":"610mm","slug":"610mm","title":" 610mm"},{"id":3851,"name":"660mm","slug":"660mm","title":" 660mm"},{"id":3854,"name":"711mm","slug":"711mm","title":" 711mm"},{"id":3857,"name":"762mm","slug":"762mm","title":" 762mm"},{"id":3860,"name":"813mm","slug":"813mm","title":" 813mm"},{"id":3863,"name":"914mm","slug":"914mm","title":" 914mm"}]},"pa_hpsl-45-rod-dia":{"title":"Product HPSL 45 - Rod Dia","view":"select","options":[{"id":3819,"name":"2.00\"","slug":"2-00","title":" 2.00\""}]},"pa_hpsl-45-closed-centre":{"title":"Product HPSL 45 - Closed Centre","view":"select","options":[{"id":3820,"name":"18.25\"","slug":"18-25","title":" 18.25\""},{"id":3825,"name":"20.25\"","slug":"20-25","title":" 20.25\""},{"id":3828,"name":"22.25\"","slug":"22-25","title":" 22.25\""},{"id":3831,"name":"24.25\"","slug":"24-25","title":" 24.25\""},{"id":3834,"name":"26.25\"","slug":"26-25","title":" 26.25\""},{"id":3837,"name":"28.25\"","slug":"28-25","title":" 28.25\""},{"id":3840,"name":"30.25\"","slug":"30-25","title":" 30.25\""},{"id":3843,"name":"32.25\"","slug":"32-25","title":" 32.25\""},{"id":3846,"name":"34.25\"","slug":"34-25","title":" 34.25\""},{"id":3849,"name":"36.25\"","slug":"36-25","title":" 36.25\""},{"id":3852,"name":"38.25\"","slug":"38-25","title":" 38.25\""},{"id":3855,"name":"40.25\"","slug":"40-25","title":" 40.25\""},{"id":3858,"name":"42.25\"","slug":"42-25","title":" 42.25\""},{"id":3861,"name":"44.25\"","slug":"44-25","title":" 44.25\""},{"id":3864,"name":"48.25\"","slug":"48-25","title":" 48.25\""},{"id":3867,"name":"52.25\"","slug":"52-25","title":" 52.25\""},{"id":3870,"name":"60.25\"","slug":"60-25","title":" 60.25\""}]},"pa_hpsl-45-port-size":{"title":"Product HPSL 45 - Port Size","view":"select","options":[{"id":3821,"name":"7\/8\" UNO","slug":"7-8-uno","title":" 7\/8\" UNO"}]}}
Loading ...
{"mode":"ajax","ajax_url":"https:\/\/dev.crosshydraulics.co.nz\/wp-admin\/admin-ajax.php","selected_lang":"en_AU","table_data":[],"heads":{"sku":"Stock Number","pa_hpsl-45-bore-in":"Bore in","pa_hpsl-45-bore-mm":"Bore mm","pa_hpsl-45-stroke-in":"Stroke in","pa_hpsl-45-stroke-mm":"Stroke mm","pa_hpsl-45-rod-dia":"Rod Dia in","pa_hpsl-45-closed-centre":"Closed Centre in","pa_hpsl-45-port-size":"Port Size","thumbnail":"Click Image to View Product"},"hide_on_mobile":[],"cells_width":["auto","auto","auto","auto","auto","auto","auto","auto","auto"],"orders":{"id":"desc","post_title":"asc","post_status":"asc","post_date":"desc","post_modified":"desc","comment_count":"desc","price":"asc","regular_price":"asc","sale_price":"asc","sku":"asc","downloadable":"asc","weight":"asc","length":"asc","height":"asc","width":"asc","manage_stock":"asc","stock_status":"asc","stock_quantity":"asc","sold_individually":"asc","total_sales":"asc","review_count":"asc","menu_order":"asc","average_rating":"asc"},"editable":[],"custom_field_keys":[],"total_rows_count":20,"use_load_more":1,"css_classes":"","no_found_text":"","show_print_btn":0,"post_id":0,"compact_view_width":-1,"stop_notice":"","use_flow_header":1,"style":"","skin":"","pagination":{"position":"tb","next":{"class":"woot-btn","content":">"},"prev":{"class":"woot-btn","content":"<"},"input":{"class":"woot-form-control"}},"lang":{"loading":"Loading ...","no_data":"No Data!","error":"Error!","items":"Products","page":"Page","pages":"Pages","load_more":"Load More"},"per_page_sel_position":"tb","per_page_sel_pp":["10","20","30","40","50","60","70","80","90","100"],"print_css_url":"https:\/\/dev.crosshydraulics.co.nz\/wp-content\/plugins\/woot-products-tables\/assets\/css\/print.css","request_data":{"action":"woot_get_table_data","fields":["sku","pa_hpsl-45-bore-in","pa_hpsl-45-bore-mm","pa_hpsl-45-stroke-in","pa_hpsl-45-stroke-mm","pa_hpsl-45-rod-dia","pa_hpsl-45-closed-centre","pa_hpsl-45-port-size","thumbnail"],"post_type":"product","wp_columns_actions":"woot_woocommerce_tables","table_id":234,"predefinition":"{\u0022rules\u0022:{\u0022by_taxonomy\u0022:\u0022product_cat:3822\u0022}}","filter_data":"","filter_provider":"woocommerce","orderby":"sku","order":"asc","per_page":20,"current_page":0,"shortcode_args_set":"{\u0022id\u0022:\u0022234\u0022,\u0022action\u0022:\u0022woot_woocommerce_tables\u0022,\u0022no_found_text\u0022:\u0022\u0022,\u0022use_flow_header\u0022:1}","woot_link_get_data":"[]"}}
5.00” Bore Single Lug Welded Hydraulic Cylinders, Screwed Rod Cap
Overview:
- Bore: 5.00″ (127mm)
- Stroke: 6.00″ (152.4mm)— 48.00″ (1219.2mm)
- Rod Diameter: 2.00″
- Port Size: 7/8″ UNO
{"pa_hpsl-50-bore-in":{"title":"Product HPSL 50 - Bore in","view":"select","options":[{"id":3871,"name":"5.00\"","slug":"5-00","title":" 5.00\""}]},"pa_hpsl-50-bore-mm":{"title":"Product HPSL 50 - Bore mm","view":"select","options":[{"id":3872,"name":"127mm","slug":"127mm","title":" 127mm"}]},"pa_hpsl-50-stroke-in":{"title":"Product HPSL 50 - Stroke in","view":"select","options":[{"id":3882,"name":"10.00\"","slug":"10-00","title":" 10.00\""},{"id":3885,"name":"12.00\"","slug":"12-00","title":" 12.00\""},{"id":3888,"name":"14.00\"","slug":"14-00","title":" 14.00\""},{"id":3891,"name":"16.00\"","slug":"16-00","title":" 16.00\""},{"id":3894,"name":"18.00\"","slug":"18-00","title":" 18.00\""},{"id":3897,"name":"20.00\"","slug":"20-00","title":" 20.00\""},{"id":3900,"name":"22.00\"","slug":"22-00","title":" 22.00\""},{"id":3903,"name":"24.00\"","slug":"24-00","title":" 24.00\""},{"id":3906,"name":"26.00\"","slug":"26-00","title":" 26.00\""},{"id":3909,"name":"28.00\"","slug":"28-00","title":" 28.00\""},{"id":3912,"name":"30.00\"","slug":"30-00","title":" 30.00\""},{"id":3915,"name":"32.00\"","slug":"32-00","title":" 32.00\""},{"id":3918,"name":"36.00\"","slug":"36-00","title":" 36.00\""},{"id":3921,"name":"40.00\"","slug":"40-00","title":" 40.00\""},{"id":3924,"name":"48.00\"","slug":"48-00","title":" 48.00\""},{"id":3873,"name":"6.00\"","slug":"6-00","title":" 6.00\""},{"id":3879,"name":"8.00\"","slug":"8-00","title":" 8.00\""}]},"pa_hpsl-50-stroke-mm":{"title":"Product HPSL 50 - Stroke mm","view":"select","options":[{"id":3922,"name":"1016mm","slug":"1016mm","title":" 1016mm"},{"id":3925,"name":"1219mm","slug":"1219mm","title":" 1219mm"},{"id":3874,"name":"152mm","slug":"152mm","title":" 152mm"},{"id":3880,"name":"203mm","slug":"203mm","title":" 203mm"},{"id":3883,"name":"254mm","slug":"254mm","title":" 254mm"},{"id":3886,"name":"305mm","slug":"305mm","title":" 305mm"},{"id":3889,"name":"356mm","slug":"356mm","title":" 356mm"},{"id":3892,"name":"406mm","slug":"406mm","title":" 406mm"},{"id":3895,"name":"457mm","slug":"457mm","title":" 457mm"},{"id":3898,"name":"508mm","slug":"508mm","title":" 508mm"},{"id":3901,"name":"559mm","slug":"559mm","title":" 559mm"},{"id":3904,"name":"610mm","slug":"610mm","title":" 610mm"},{"id":3907,"name":"660mm","slug":"660mm","title":" 660mm"},{"id":3910,"name":"711mm","slug":"711mm","title":" 711mm"},{"id":3913,"name":"762mm","slug":"762mm","title":" 762mm"},{"id":3916,"name":"813mm","slug":"813mm","title":" 813mm"},{"id":3919,"name":"914mm","slug":"914mm","title":" 914mm"}]},"pa_hpsl-50-rod-dia":{"title":"Product HPSL 50 - Rod Dia","view":"select","options":[{"id":3875,"name":"2.00\"","slug":"2-00","title":" 2.00\""}]},"pa_hpsl-50-closed-centre":{"title":"Product HPSL 50 - Closed Centre","view":"select","options":[{"id":3876,"name":"18.25\"","slug":"18-25","title":" 18.25\""},{"id":3881,"name":"20.25\"","slug":"20-25","title":" 20.25\""},{"id":3884,"name":"22.25\"","slug":"22-25","title":" 22.25\""},{"id":3887,"name":"24.25\"","slug":"24-25","title":" 24.25\""},{"id":3890,"name":"26.25\"","slug":"26-25","title":" 26.25\""},{"id":3893,"name":"28.25\"","slug":"28-25","title":" 28.25\""},{"id":3896,"name":"30.25\"","slug":"30-25","title":" 30.25\""},{"id":3899,"name":"32.25\"","slug":"32-25","title":" 32.25\""},{"id":3902,"name":"34.25\"","slug":"34-25","title":" 34.25\""},{"id":3905,"name":"36.25\"","slug":"36-25","title":" 36.25\""},{"id":3908,"name":"38.25\"","slug":"38-25","title":" 38.25\""},{"id":3911,"name":"40.25\"","slug":"40-25","title":" 40.25\""},{"id":3914,"name":"42.25\"","slug":"42-25","title":" 42.25\""},{"id":3917,"name":"44.25\"","slug":"44-25","title":" 44.25\""},{"id":3920,"name":"48.25\"","slug":"48-25","title":" 48.25\""},{"id":3923,"name":"52.25\"","slug":"52-25","title":" 52.25\""},{"id":3926,"name":"60.25\"","slug":"60-25","title":" 60.25\""}]},"pa_hpsl-50-port-size":{"title":"Product HPSL 50 - Port Size","view":"select","options":[{"id":3877,"name":"7\/8\" UNO","slug":"7-8-uno","title":" 7\/8\" UNO"}]}}
Loading ...
{"mode":"ajax","ajax_url":"https:\/\/dev.crosshydraulics.co.nz\/wp-admin\/admin-ajax.php","selected_lang":"en_AU","table_data":[],"heads":{"sku":"Stock Number","pa_hpsl-50-bore-in":"Bore in","pa_hpsl-50-bore-mm":"Bore mm","pa_hpsl-50-stroke-in":"Stroke in","pa_hpsl-50-stroke-mm":"Stroke mm","pa_hpsl-50-rod-dia":"Rod Dia in","pa_hpsl-50-closed-centre":"Closed Centre in","pa_hpsl-50-port-size":"Port Size","thumbnail":"Click Image to View Product"},"hide_on_mobile":[],"cells_width":["auto","auto","auto","auto","auto","auto","auto","auto","auto"],"orders":{"id":"desc","post_title":"asc","post_status":"asc","post_date":"desc","post_modified":"desc","comment_count":"desc","price":"asc","regular_price":"asc","sale_price":"asc","sku":"asc","downloadable":"asc","weight":"asc","length":"asc","height":"asc","width":"asc","manage_stock":"asc","stock_status":"asc","stock_quantity":"asc","sold_individually":"asc","total_sales":"asc","review_count":"asc","menu_order":"asc","average_rating":"asc"},"editable":[],"custom_field_keys":[],"total_rows_count":20,"use_load_more":1,"css_classes":"","no_found_text":"","show_print_btn":0,"post_id":0,"compact_view_width":-1,"stop_notice":"","use_flow_header":1,"style":"","skin":"","pagination":{"position":"tb","next":{"class":"woot-btn","content":">"},"prev":{"class":"woot-btn","content":"<"},"input":{"class":"woot-form-control"}},"lang":{"loading":"Loading ...","no_data":"No Data!","error":"Error!","items":"Products","page":"Page","pages":"Pages","load_more":"Load More"},"per_page_sel_position":"tb","per_page_sel_pp":["10","20","30","40","50","60","70","80","90","100"],"print_css_url":"https:\/\/dev.crosshydraulics.co.nz\/wp-content\/plugins\/woot-products-tables\/assets\/css\/print.css","request_data":{"action":"woot_get_table_data","fields":["sku","pa_hpsl-50-bore-in","pa_hpsl-50-bore-mm","pa_hpsl-50-stroke-in","pa_hpsl-50-stroke-mm","pa_hpsl-50-rod-dia","pa_hpsl-50-closed-centre","pa_hpsl-50-port-size","thumbnail"],"post_type":"product","wp_columns_actions":"woot_woocommerce_tables","table_id":235,"predefinition":"{\u0022rules\u0022:{\u0022by_taxonomy\u0022:\u0022product_cat:3878\u0022}}","filter_data":"","filter_provider":"woocommerce","orderby":"sku","order":"asc","per_page":20,"current_page":0,"shortcode_args_set":"{\u0022id\u0022:\u0022235\u0022,\u0022action\u0022:\u0022woot_woocommerce_tables\u0022,\u0022no_found_text\u0022:\u0022\u0022,\u0022use_flow_header\u0022:1}","woot_link_get_data":"[]"}}
HPSL
The Hypower HPSL Series are a high quality Australian made cylinder. They feature cylinder barrels that are precision honed and inspected for smoothness and cylindricity to provide longer seal life.
Technical Specifications:
-
- Bore: 2.5″-5.0″ in 0.5″ increments
- Maximum shock and surge pressure: 4000 psi (276 bar)
- Working Pressure: 3000 psi (210 bar)
Options & Accessories
Dual Counter Balance Valve Kit
{"pa_hpsl-dual-counter-suits":{"title":"Product HPSL Dual Counter Suits","view":"select","options":[{"id":4239,"name":"HPSL25","slug":"hpsl25","title":" HPSL25"},{"id":4241,"name":"HPSL30","slug":"hpsl30","title":" HPSL30"},{"id":4242,"name":"HPSL35","slug":"hpsl35","title":" HPSL35"},{"id":4243,"name":"HPSL40","slug":"hpsl40","title":" HPSL40"},{"id":4244,"name":"HPSL45","slug":"hpsl45","title":" HPSL45"},{"id":4245,"name":"HPSL50","slug":"hpsl50","title":" HPSL50"}]}}
Loading ...
{"mode":"ajax","ajax_url":"https:\/\/dev.crosshydraulics.co.nz\/wp-admin\/admin-ajax.php","selected_lang":"en_AU","table_data":[],"heads":{"sku":"Stock Number","pa_hpsl-dual-counter-suits":"Suits","thumbnail":"Click Image to View Product"},"hide_on_mobile":[],"cells_width":["auto","auto","auto"],"orders":{"id":"desc","post_title":"asc","post_status":"asc","post_date":"desc","post_modified":"desc","comment_count":"desc","price":"asc","regular_price":"asc","sale_price":"asc","sku":"asc","downloadable":"asc","weight":"asc","length":"asc","height":"asc","width":"asc","manage_stock":"asc","stock_status":"asc","stock_quantity":"asc","sold_individually":"asc","total_sales":"asc","review_count":"asc","menu_order":"asc","average_rating":"asc"},"editable":[],"custom_field_keys":[],"total_rows_count":20,"use_load_more":1,"css_classes":"","no_found_text":"","show_print_btn":0,"post_id":0,"compact_view_width":-1,"stop_notice":"","use_flow_header":1,"style":"","skin":"","pagination":{"position":"tb","next":{"class":"woot-btn","content":">"},"prev":{"class":"woot-btn","content":"<"},"input":{"class":"woot-form-control"}},"lang":{"loading":"Loading ...","no_data":"No Data!","error":"Error!","items":"Products","page":"Page","pages":"Pages","load_more":"Load More"},"per_page_sel_position":"tb","per_page_sel_pp":["10","20","30","40","50","60","70","80","90","100"],"print_css_url":"https:\/\/dev.crosshydraulics.co.nz\/wp-content\/plugins\/woot-products-tables\/assets\/css\/print.css","request_data":{"action":"woot_get_table_data","fields":["sku","pa_hpsl-dual-counter-suits","thumbnail"],"post_type":"product","wp_columns_actions":"woot_woocommerce_tables","table_id":258,"predefinition":"{\u0022rules\u0022:{\u0022by_taxonomy\u0022:\u0022product_cat:4543\u0022}}","filter_data":"","filter_provider":"woocommerce","orderby":"sku","order":"asc","per_page":20,"current_page":0,"shortcode_args_set":"{\u0022id\u0022:\u0022258\u0022,\u0022action\u0022:\u0022woot_woocommerce_tables\u0022,\u0022no_found_text\u0022:\u0022\u0022,\u0022use_flow_header\u0022:1}","woot_link_get_data":"[]"}}
Spare Parts:
Seal Kits
{"pa_hpsl-seal-kits-spare-cyl":{"title":"Product HPSL Seal Kits Spare Cyl","view":"select","options":[{"id":4222,"name":"HPSL Screwed","slug":"hpsl-screwed","title":" HPSL Screwed"}]},"pa_hpsl-seal-kits-spare-bore":{"title":"Product HPSL Seal Kits Spare Bore","view":"select","options":[{"id":4223,"name":"2.00\u2033","slug":"2-00%e2%80%b3","title":" 2.00\u2033"},{"id":4226,"name":"2.50\u2033","slug":"2-50%e2%80%b3","title":" 2.50\u2033"},{"id":4228,"name":"3.00\u2033","slug":"3-00%e2%80%b3","title":" 3.00\u2033"},{"id":4229,"name":"3.50\u2033","slug":"3-50%e2%80%b3","title":" 3.50\u2033"},{"id":4231,"name":"4.00\u2033","slug":"4-00%e2%80%b3","title":" 4.00\u2033"},{"id":4233,"name":"4.50\u2033","slug":"4-50%e2%80%b3","title":" 4.50\u2033"},{"id":4234,"name":"5.00\u2033","slug":"5-00%e2%80%b3","title":" 5.00\u2033"}]},"pa_hpsl-seal-kits-spare-shaft":{"title":"Product HPSL Seal Kits Spare Shaft","view":"select","options":[{"id":4224,"name":"1.25\u2033","slug":"1-25%e2%80%b3","title":" 1.25\u2033"},{"id":4227,"name":"1.50\u2033","slug":"1-50%e2%80%b3","title":" 1.50\u2033"},{"id":4230,"name":"1.75\u2033","slug":"1-75%e2%80%b3","title":" 1.75\u2033"},{"id":4232,"name":"2.00\u2033","slug":"2-00%e2%80%b3","title":" 2.00\u2033"}]}}
Loading ...
{"mode":"ajax","ajax_url":"https:\/\/dev.crosshydraulics.co.nz\/wp-admin\/admin-ajax.php","selected_lang":"en_AU","table_data":[],"heads":{"sku":"Stock Number","pa_hpsl-seal-kits-spare-cyl":"Cylinder Type","pa_hpsl-seal-kits-spare-bore":"Bore Size","pa_hpsl-seal-kits-spare-shaft":"Shaft Size","thumbnail":"Click Image to View Product"},"hide_on_mobile":[],"cells_width":["auto","auto","auto","auto","auto"],"orders":{"id":"desc","post_title":"asc","post_status":"asc","post_date":"desc","post_modified":"desc","comment_count":"desc","price":"asc","regular_price":"asc","sale_price":"asc","sku":"asc","downloadable":"asc","weight":"asc","length":"asc","height":"asc","width":"asc","manage_stock":"asc","stock_status":"asc","stock_quantity":"asc","sold_individually":"asc","total_sales":"asc","review_count":"asc","menu_order":"asc","average_rating":"asc"},"editable":[],"custom_field_keys":[],"total_rows_count":20,"use_load_more":1,"css_classes":"","no_found_text":"","show_print_btn":0,"post_id":0,"compact_view_width":-1,"stop_notice":"","use_flow_header":1,"style":"","skin":"","pagination":{"position":"tb","next":{"class":"woot-btn","content":">"},"prev":{"class":"woot-btn","content":"<"},"input":{"class":"woot-form-control"}},"lang":{"loading":"Loading ...","no_data":"No Data!","error":"Error!","items":"Products","page":"Page","pages":"Pages","load_more":"Load More"},"per_page_sel_position":"tb","per_page_sel_pp":["10","20","30","40","50","60","70","80","90","100"],"print_css_url":"https:\/\/dev.crosshydraulics.co.nz\/wp-content\/plugins\/woot-products-tables\/assets\/css\/print.css","request_data":{"action":"woot_get_table_data","fields":["sku","pa_hpsl-seal-kits-spare-cyl","pa_hpsl-seal-kits-spare-bore","pa_hpsl-seal-kits-spare-shaft","thumbnail"],"post_type":"product","wp_columns_actions":"woot_woocommerce_tables","table_id":256,"predefinition":"{\u0022rules\u0022:{\u0022by_taxonomy\u0022:\u0022product_cat:4225\u0022}}","filter_data":"","filter_provider":"woocommerce","orderby":"sku","order":"asc","per_page":20,"current_page":0,"shortcode_args_set":"{\u0022id\u0022:\u0022256\u0022,\u0022action\u0022:\u0022woot_woocommerce_tables\u0022,\u0022no_found_text\u0022:\u0022\u0022,\u0022use_flow_header\u0022:1}","woot_link_get_data":"[]"}}
Rod Clevis
{"pa_hpnm-type-rod-clevis":{"title":"Product HPNM Type Rod Clevis","view":"select","options":[{"id":4393,"name":"Female","slug":"female","title":" Female"}]},"pa_hpnm-thread-rod-clevis":{"title":"Product HPNM Thread Rod Clevis","view":"select","options":[{"id":4394,"name":"1\u2033-12 UNF","slug":"1%e2%80%b3-12-unf","title":" 1\u2033-12 UNF"}]},"pa_hpnm-pin-size-rod-clevis":{"title":"Product HPNM Pin Size Rod Clevis","view":"select","options":[{"id":4395,"name":"1\u2033","slug":"1%e2%80%b3","title":" 1\u2033"}]}}
Loading ...
{"mode":"ajax","ajax_url":"https:\/\/dev.crosshydraulics.co.nz\/wp-admin\/admin-ajax.php","selected_lang":"en_AU","table_data":[],"heads":{"sku":"Stock Number","pa_hpsl-rod-clevis-type":"Type","pa_hpsl-rod-clevis-thread":"Thread","pa_hpsl-rod-clevis-pin":"Pin Size","thumbnail":"Click Image to View Product"},"hide_on_mobile":[],"cells_width":["auto","auto","auto","auto","auto"],"orders":{"id":"desc","post_title":"asc","post_status":"asc","post_date":"desc","post_modified":"desc","comment_count":"desc","price":"asc","regular_price":"asc","sale_price":"asc","sku":"asc","downloadable":"asc","weight":"asc","length":"asc","height":"asc","width":"asc","manage_stock":"asc","stock_status":"asc","stock_quantity":"asc","sold_individually":"asc","total_sales":"asc","review_count":"asc","menu_order":"asc","average_rating":"asc"},"editable":[],"custom_field_keys":[],"total_rows_count":20,"use_load_more":1,"css_classes":"","no_found_text":"","show_print_btn":0,"post_id":0,"compact_view_width":-1,"stop_notice":"","use_flow_header":1,"style":"","skin":"","pagination":{"position":"tb","next":{"class":"woot-btn","content":">"},"prev":{"class":"woot-btn","content":"<"},"input":{"class":"woot-form-control"}},"lang":{"loading":"Loading ...","no_data":"No Data!","error":"Error!","items":"Products","page":"Page","pages":"Pages","load_more":"Load More"},"per_page_sel_position":"tb","per_page_sel_pp":["10","20","30","40","50","60","70","80","90","100"],"print_css_url":"https:\/\/dev.crosshydraulics.co.nz\/wp-content\/plugins\/woot-products-tables\/assets\/css\/print.css","request_data":{"action":"woot_get_table_data","fields":["sku","pa_hpsl-rod-clevis-type","pa_hpsl-rod-clevis-thread","pa_hpsl-rod-clevis-pin","thumbnail"],"post_type":"product","wp_columns_actions":"woot_woocommerce_tables","table_id":257,"predefinition":"{\u0022rules\u0022:{\u0022by_taxonomy\u0022:\u0022product_cat:4550\u0022}}","filter_data":"","filter_provider":"woocommerce","orderby":"sku","order":"asc","per_page":20,"current_page":0,"shortcode_args_set":"{\u0022id\u0022:\u0022257\u0022,\u0022action\u0022:\u0022woot_woocommerce_tables\u0022,\u0022no_found_text\u0022:\u0022\u0022,\u0022use_flow_header\u0022:1}","woot_link_get_data":"[]"}}
Category: Hydraulic Cylinders
Brand: Hypower
